Male to Male NPT Tank Mount Suction Strainers - Hydraulic Filters

NPT Tank Mount Suction Strainers are used in petroleum based fluids, coolants, lubricants, and many process fluids.

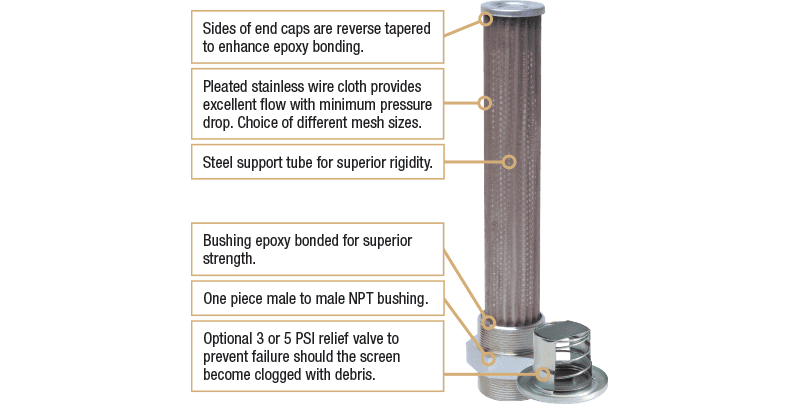

A tank-mounted strainer is installed through a tank top and may be removed for servicing without draining the tank.

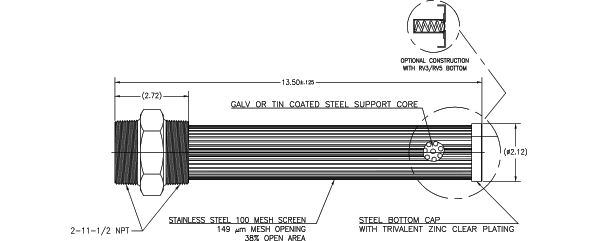

Part Number	NPT Threads	Mesh	Bushing Height	Hex Size	Diameter
TMN-2x2-XXX	2x2	13.50	2.72	2.75	2.12
All dimensions are in inches and for reference only.

Part Number	Mesh	Relief Valve*
TMN-2x2-XXX	30	RV3**
	TMN-2x2-30-RV3
*If no relief valve is required, leave blank
**Relief valve comes in 3psi or 5psi version
