Flow Diffusers - Hydraulic Filters

Benefits

Can be mounted horizontally in tank with discharge side facing away from suction
Discharge side should be pointed towards the tank wall or tank bottom
Can be highly effective in reducing aeration, foaming, turbulence and noise caused by return lines
Flow rates to 300 gpm

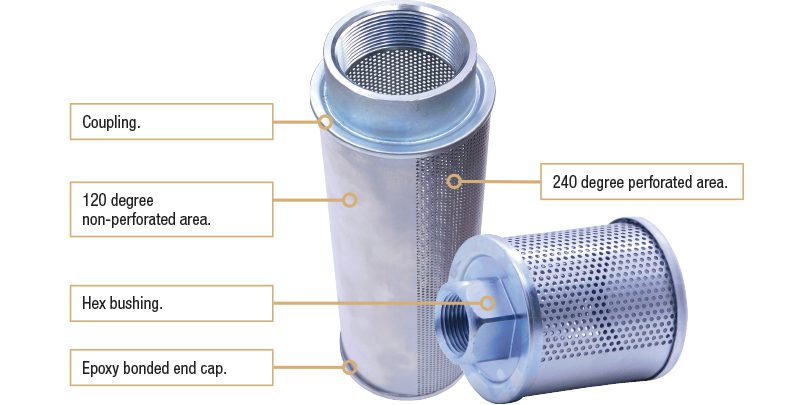

Features

Flow diffusers are for hydraulic high-speed return lines, to slow down ﬂuids entering the reservoir. They help cure foaming problems and prevent cavitation caused by ﬂow disturbance at the pump inlet. They allow greater freedom in reservoir design and may even eliminate the need for tank baffling plates. They also reduce reservoir noise.

Our flow diffusers are rugged, high-performing products for a wide variety of hydraulic systems. We’ve got the right diffusers to protect your machinery, and if we don’t, we will make it for you through our custom, integrated manufacturing process.

Options

These flow diffusers may be ordered with nut or nipple connector upon request
Pleated screen available for return line filtration upon request
We offer a variety of other plastic or metal caps by request

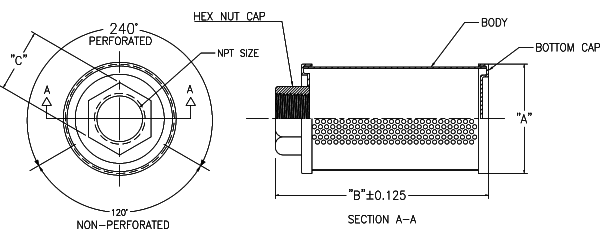

Part Number	GPM	NPT Size	"A" Diameter	"B" Length	"C" Hex Head Width
GDFD-30	30	3/4	3.38	3.00	1.31
GDFD-60	60	1	3.38	4.20	1.62
GDFD-90	90	1-1/4	3.38	6.50	1.87
GDFD-120	120	1-1/2	4.43	6.60	2.12
GDFD-200	200	2	4.43	10.30	2.75
GDFD-250	250	2-1/2	5.12	13.00	*
GDFD-300	300	3	5.12	15.50	*
All dimensions are in inches and for reference only.
*Denotes parts use round coupling cap instead of hex nut cap.
